CYKLER
______________________________________________________________________
Hos Tempo Cykler har vi et stort udvalg af cykler. Du kan se alle vores cykler her på siden. Hvis du har andre ønsker eller spørgsmål til cyklerne er du altid velkommen til at kontakte os eller kigge forbi butikken.

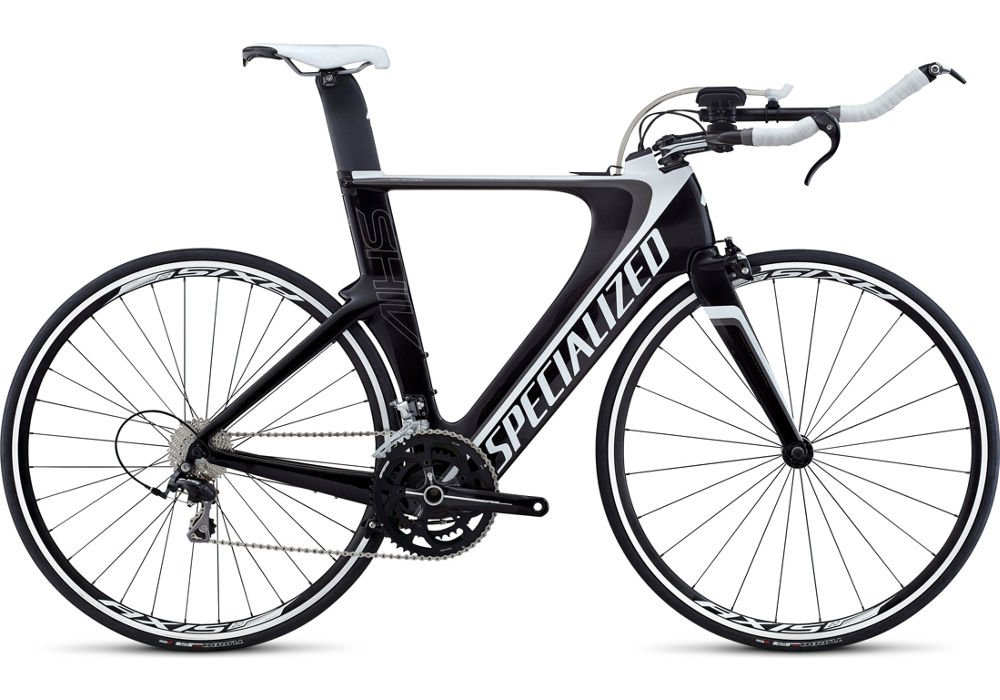

SHIV ELITE
FRAME
Specialized Shiv Pro 10r carbon, FACT IS construction, crosswind-optimized airfoils, 1-1/8" lower bearing, OSBB, Control Tower Fit System, Fuelselage Integrated Hydration System
SWAT
REAR SHOCK
FORK
Specialized FACT Aero carbon monocoque, carbon steerer and crown for 1-1/8" bearing
HEADSET
1-1/8" upper and lower, Cr-Mo cartridge bearings
STEM
Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt, 31.8mm
HANDLEBARS
Specialized Hydroformed Alloy Aerobar
TAPE
Specialized S-Wrap
FRONT BRAKE
Specialized Shiv Aero
REAR BRAKE
Specialized Shiv Aero
BRAKE LEVERS
TRP Aero lever
FRONT DERAILLEUR
SRAM Tiagra
REAR DERAILLEUR
SRAM 105, 10-speed
SHIFT LEVERS
Shimano Dura-Ace TT levers, 10-speed
CASSETTE
Shimano Tiagra, 10-speed, 12-28
CHAIN
KMC X10 CP, 10-speed
CRANKSET
FSA Gossamer BB30
CHAINRINGS
52/36
BOTTOM BRACKET
OS integrated
PEDALS
Nylon flat test ride, loose-ball, w/ reflectors
FRONT WHEEL
AXIS 2.0
REAR WHEEL
AXIS 2.0
RIMS
FRONT HUB
REAR HUB
SPOKES
FRONT TIRE
Specialized Turbo Elite, 100TPI, aramid bead, BlackBelt protection, 700x23c
REAR TIRE
Specialized Turbo Elite, 100TPI, aramid bead, BlackBelt protection, 700x23c
INNER TUBES
Standard presta valve
SADDLE
Body Geometry Sitero Comp, w/ SWAT Technology, hollow Cr-Mo rails
SEATPOST
Shiv Aero FACT carbon, 12.5mm
SEAT BINDER
Shiv seat clamp
EQUIPPED
NOTES
Specifications subject to change without notice.
Shiv Elite Bike Geometry
Size XS S M L XL
B-B Drop
72mm
72mm
72mm
72mm
72mm
Chain-Stay Length
395mm
395mm
395mm
395mm
395mm
Crank Length
165mm
170mm
172.5mm
172.5mm
175mm
Fork Rake
50mm
50mm
45mm
45mm
45mm
Frame Reach
365mm
385mm
405mm
425mm
445mm
Frame Stack
495mm
515mm
540mm
565mm
590mm
Front-Center
573mm
589mm
608mm
631mm
659mm
Head-Tube Angle
70.25°
71.5°
72°
72.5°
72.5°
Head-Tube Length
99mm
115mm
139mm
163mm
189mm
Seat Post Setback
12.5mm
12.5mm
12.5mm
12.5mm
12.5mm
Seat Tube Length, BB Center to Top
505mm
525mm
551mm
577mm
603mm
Seat-Post Length
350mm
350mm
350mm
350mm
350mm
Seat-Tube Angle
77°
77°
77°
77°
77°
Stand-Over Height
752mm
772mm
797mm
822mm
847mm
Stem Length, -18° Horizontal
90mm
90mm
90mm
90mm
90mm
This geo set applies to the following 2013 bike models:
0
0
0
0
0
Top Tube Length
481mm
504mm
530mm
557mm
582mm
Trail
69mm
61mm
63mm
60mm
60mm
Wheelbase
957mm
973mm
992mm
1016mm
1043mm
Technical Specs...
22.999,00 DKK
