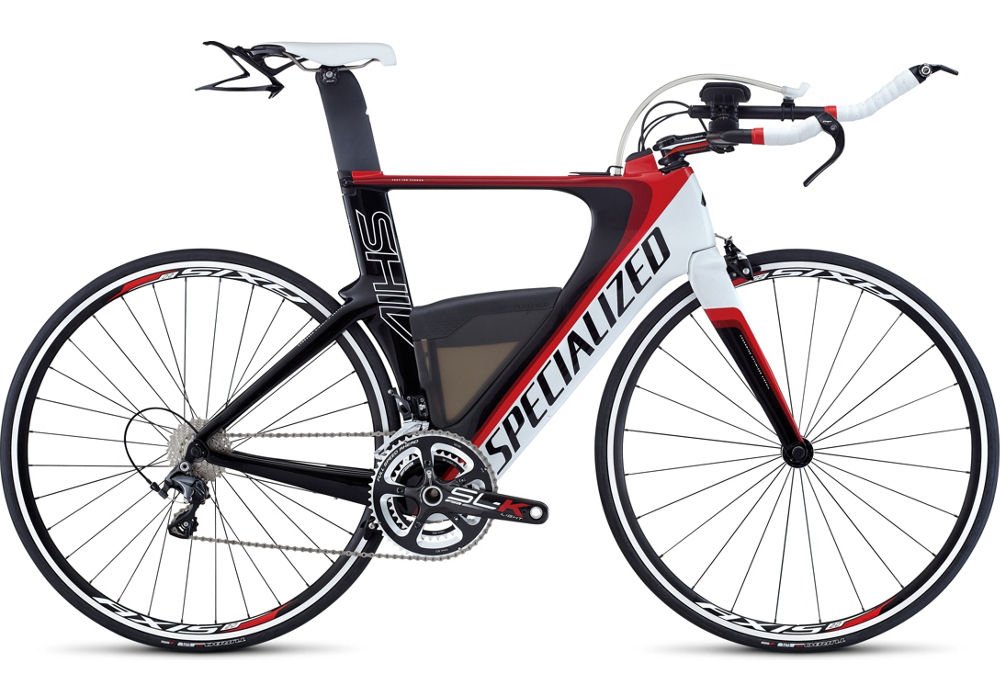

SHIV EXPERT



FRAME	Specialized Shiv Pro 10r carbon, FACT IS construction, crosswind-optimized airfoils, 1-1/8" lower bearing, OSBB, Control Tower Fit System, Fuelselage Integrated Hydration System

SWAT	Integrated hydration and frame-mounted Fuelcell

REAR SHOCK

FORK	Specialized FACT Aero carbon monocoque, carbon steerer and crown for 1-1/8" bearing

HEADSET	1-1/8" upper and lower, stainless steel cartridge bearings

STEM	Specialized Pro-Set, 3D forged 7050 aluminum, 4-position adjustable, 4-bolt, 31.8mm

HANDLEBARS	Specialized Hydroformed Alloy Aerobar

TAPE	Specialized S-Wrap

FRONT BRAKE	Specialized Shiv Aero

REAR BRAKE	Specialized Shiv Aero

BRAKE LEVERS	TRP RL970 Carbon Aero TT lever

FRONT DERAILLEUR	Shimano Ultegra, 11-speed

REAR DERAILLEUR	Shimano Ultegra, 11-speed, long-cage

SHIFT LEVERS	Shimano Dura-Ace TT levers, 11-speed

CASSETTE	Shimano Ultegra, 11-speed, 11-28

CHAIN	Shimano Ultegra, 11-speed

CRANKSET	FSA SL-K Light BB30 carbon

CHAINRINGS	52/36

BOTTOM BRACKET	OS integrated

PEDALS	Nylon flat test ride, loose-ball, w/ reflectors

FRONT WHEEL	AXIS 2.0

REAR WHEEL	AXIS 2.0

RIMS

FRONT HUB

REAR HUB

SPOKES

FRONT TIRE	Specialized Turbo Elite, 100TPI, aramid bead, BlackBelt protection, 700x23c

REAR TIRE	Specialized Turbo Elite, 100TPI, aramid bead, BlackBelt protection, 700x23c

INNER TUBES	Standard presta valve

SADDLE	Body Geometry Sitero Expert, w/ SWAT Technology, tri-pod w/ bottle cage, hollow Ti rails

SEATPOST	Shiv Aero FACT carbon, 12.5mm

SEAT BINDER	Shiv seat clamp

EQUIPPED

NOTES

Specifications subject to change without notice.

Shiv Expert Bike Geometry


Size	XS	S	M	L	XL

B-B Drop	72mm	72mm	72mm	72mm	72mm

Chain-Stay Length	395mm	395mm	395mm	395mm	395mm

Crank Length	165mm	170mm	172.5mm	172.5mm	175mm

Fork Rake	50mm	50mm	45mm	45mm	45mm

Frame Reach	365mm	385mm	405mm	425mm	445mm

Frame Stack	495mm	515mm	540mm	565mm	590mm

Front-Center	573mm	589mm	608mm	631mm	659mm

Head-Tube Angle	70.25°	71.5°	72°	72.5°	72.5°

Head-Tube Length	99mm	115mm	139mm	163mm	189mm

Seat Post Setback	12.5mm	12.5mm	12.5mm	12.5mm	12.5mm

Seat Tube Length, BB Center to Top	505mm	525mm	551mm	577mm	603mm

Seat-Post Length	350mm	350mm	350mm	350mm	350mm

Seat-Tube Angle	77°	77°	77°	77°	77°

Stand-Over Height	752mm	772mm	797mm	822mm	847mm

Stem Length, -18° Horizontal	90mm	90mm	90mm	90mm	90mm

This geo set applies to the following 2013 bike models:	0	0	0	0	0

Top Tube Length	481mm	504mm	530mm	557mm	582mm

Trail	69mm	61mm	63mm	60mm	60mm

Wheelbase	957mm	973mm	992mm	1016mm	1043mm

Technical Specs...

26.999,00 DKK
