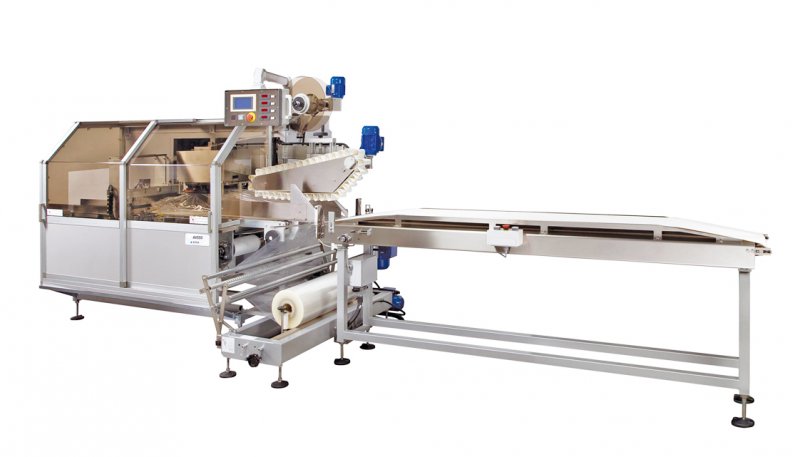

The AV550 is a packaging machine fitted with a lower film coil, therefore the product is already in the film when entering the machine. This feature together with the machine ability to work with variable pitch allows to pack, in the fruit and vegetables sector, challenging products like, for instance, cabbage, cauliflower, broccoli, iceberg, salad heads or produces in stalks like celery, fennel, leek, even contemporarily; bakery products, sausage meat, cheese. This machine is able to flow-pack and shrink cm 20x30, cm 30x40, cm 30x50 carton boxes. A sophisticated but at the same time easy-to-use electronics controls all the machine functions and the accessories as well: sealing jaws for special applications, kit for shrink film, modified atmosphere option. By means of a “beam” photocell the machine easily detects wide leaves products or products in bunches, like banana. The feeding system consists of a conveyor belt, already included in the standard machine. The AV550 can process different type of plastic films, like polypropylene, laminated one-side or both-sides heat sealable, shrink film.

TECHNICAL CHARACTERISTICS

Speed (packs per minute) Up to 50-60

Film width

max 1100 mm

Product width max 300 mm

Max clearance between jaws max 200 mm

Electrical consumption 6 KW

Compressed air consumption 150 NL/min
