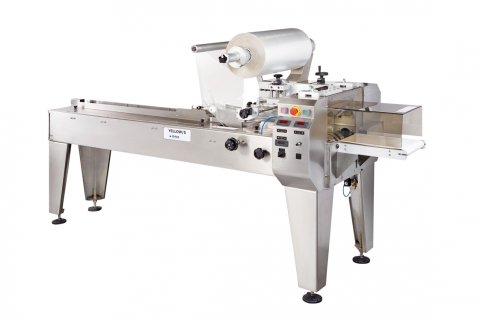

The Yellow/S 07 is the simplest and most versatile machine in the range of the Horizontal Flow-pack models by GNA srl. Made of aluminium and stainless steel, designed with small dimensions and with mainly mechanical operation in mind, it is suited to flowpack trays and to meet the most demanding requirements in the fruit and vegetables sector and in the food industry (bakery products, pasta, cheese, sweets).The pre-pack film can be consist of either Polypropylene, coextruded, micro or macroperforated, which is placed in the upper structure of the machine. By means of two crosswise sealing jaws and two lengthwise lower sealing rollers, the machine delivers a perfectly sealed and consistent pre-pack. The crosswise jaws with their rotatory operation allow constant fl uent movements of the products to be fl ow-wrapped, therefore permitting an easier feeding even with one operator only.
TECHNICAL CHARACTERISTICS
Speed (packs per minute) Up to 80
Film width max 600 mm
Bag length max 500 mm
Product width max 200 mm
Max clearance between jaws max 195 mm
Electrical consumption 3,5 KW
Compressed air consumption 15 NL/min
