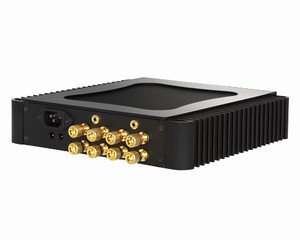

The HFX® micro – class.d
is an amplifier for the HFX® micro product line. It will
be connect with a HFX micro PC and fully controlled.
With ICEpower modules from Bang-Olufsen inside we ensure highest
sound quality.
4 channels with each
125W provided by class-d Technology provide sufficient
power.
Features:
>> 4 channels analog
input with 2 stereo phono jacks
>> 4 channels output
with 125W each
>> includes ICEpower
modules from B&O
>> cooled fanless with
heatpipes inside
>> includes remote on/off
module
Specification:
>> 4x120W @ 1% THD+N, 20Hz-20kHz, 4Ohm, SE
>> 121 dBA (BTL), 117 dBA (SE) dynamic range
>> THD+N=0.002% @ 1W (8 Ohm, 1kHz)
>> total efficiency @ 2x250W, 8Ohm is 86,4%
>> thermal and overcurrent protection
>> sound optimized soft clipping
>> dimensions: 24(w)x25(d)x5,5(h)cm
>> net weight: 2.3kg
>> 240V AC (110V AC on request)
Package
Contens:
HFX® micro class.d amplifier, remote on/off
bracket for PC
Please note, that an external 12V PSU is
needed, if you want to use the HFX micro
class.d stand-alone without any PC.
